The Bitmain Antminer S23 series is a new generation flagship lineup from Bitmain designed for BTC/BCH/BSV (SHA-256 algorithm), with the entire series entering the "single-digit energy efficiency ratio" era! Hydro-cooled models achieve an energy efficiency ratio as low as 9.5 J/T, covering full-scenario deployment needs from small mining farms to enterprise-grade racks.

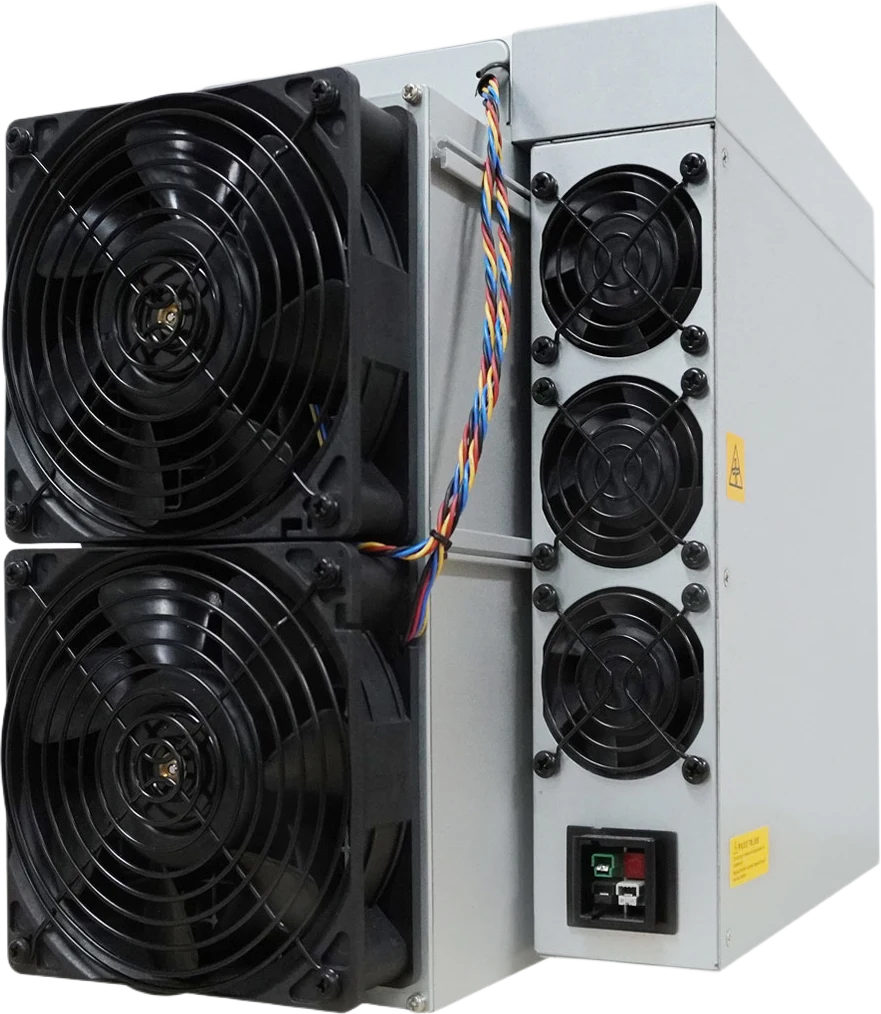

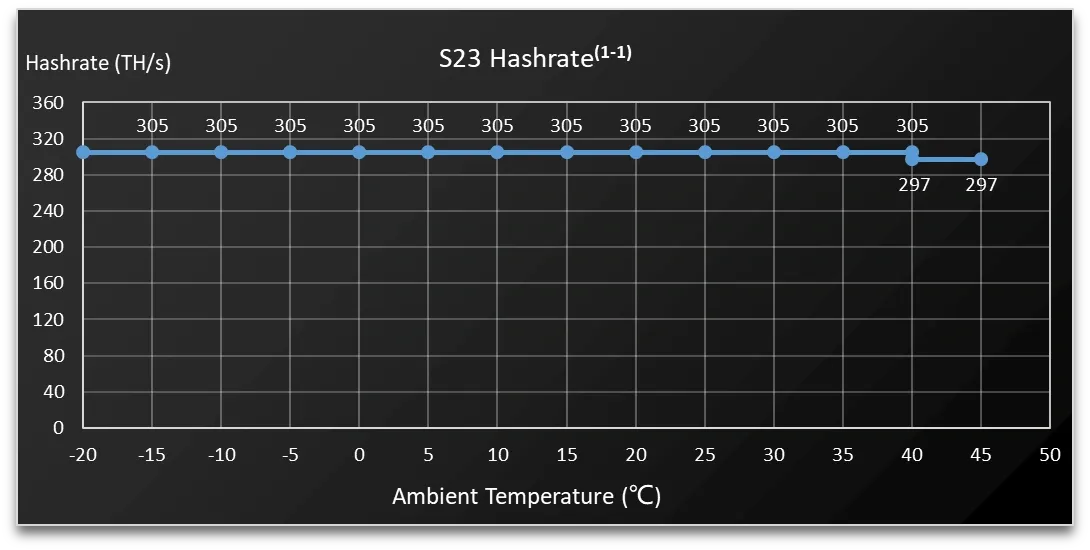

Bitmain Antminer S23

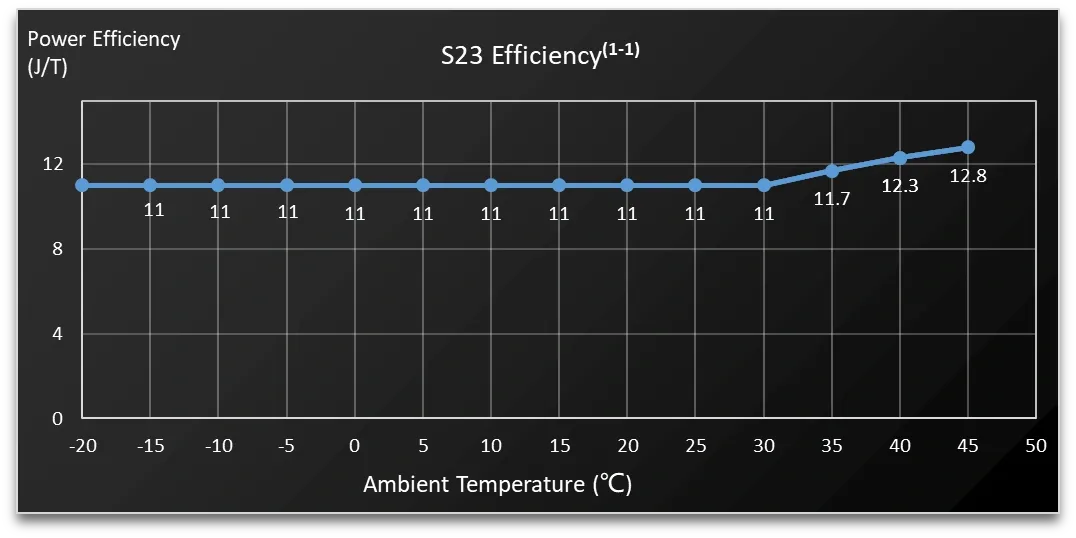

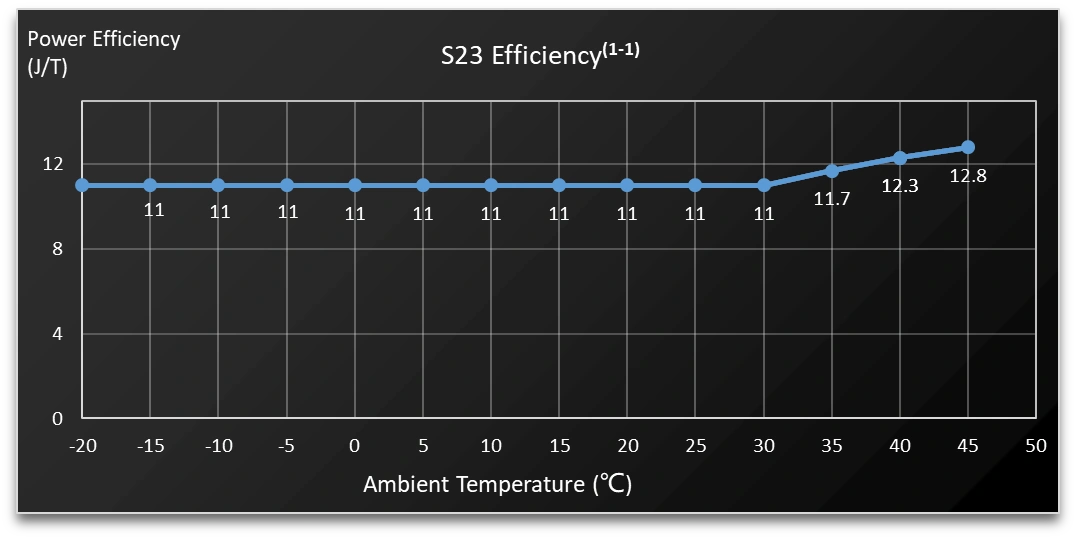

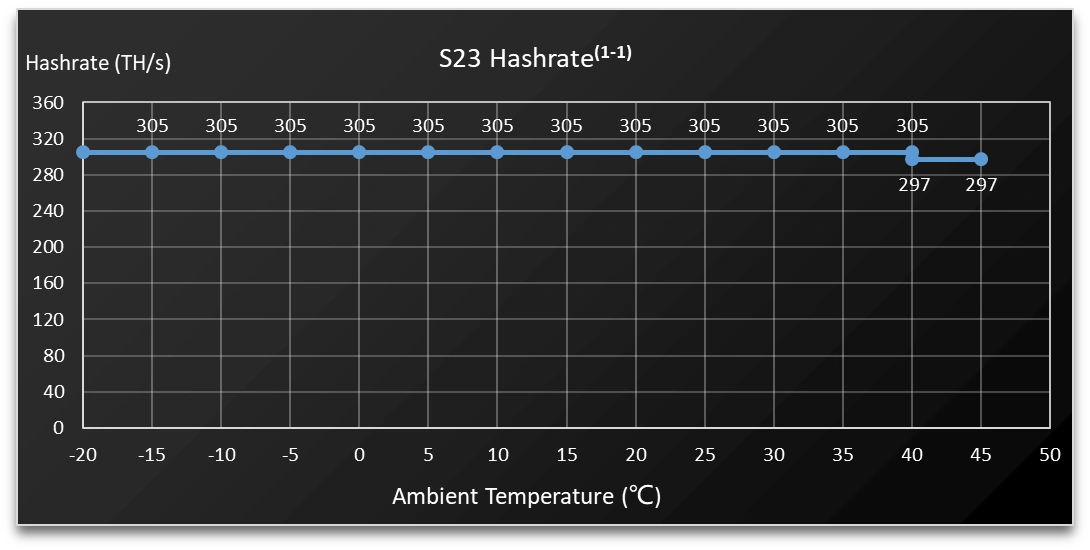

The S23 is an air-cooled SHA256 | BTC/BCH/BSV miner that delivers 305 Th/s hashrate at 3355W power consumption, with an 11 J/TH energy efficiency ratio and low noise of 76dB, making it a cost-effective plug-and-play solution for small and medium-sized mining farms.
Core Specifications
-
Hashrate / Power / Efficiency: 305 Th/s 3355W 11 J/TH
-
Dimensions: Machine 450×219×293mm (Packaging 630×350×430mm)
-
Weight: Net 20.6kg / Gross 23.1kg
-
Cooling / Noise: 4× fans 76dB Airflow 510–545 CFM
-
Voltage / Frequency / Current: 220–277V 50–60Hz 20A
-
Network Interface: RJ45 Ethernet 10/100M
-
Environment: Operating -20–45°C Storage -20–70°C Humidity 10–90% Altitude ≤2000m
-
Warranty: 365 days

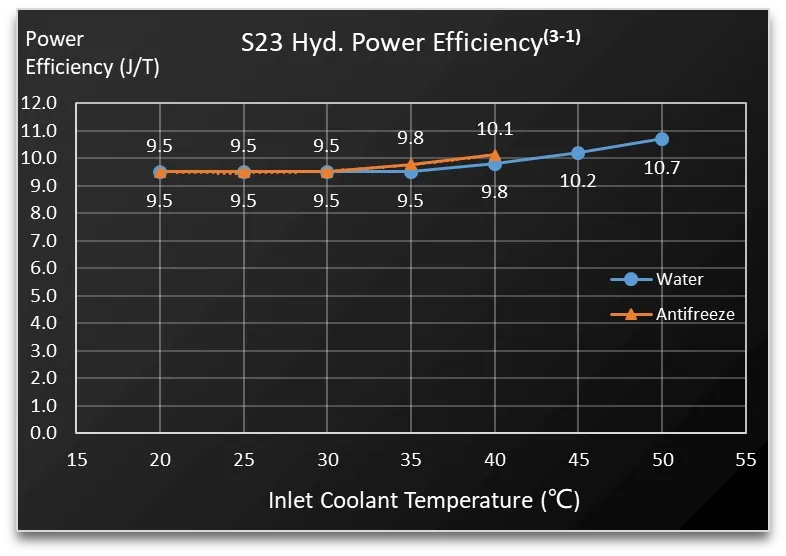

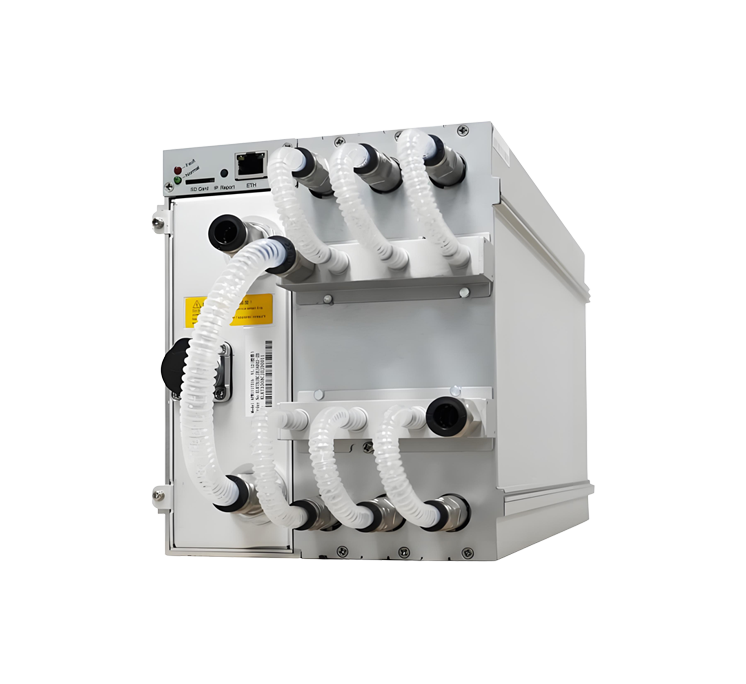

Bitmain Antminer S23 Hydro

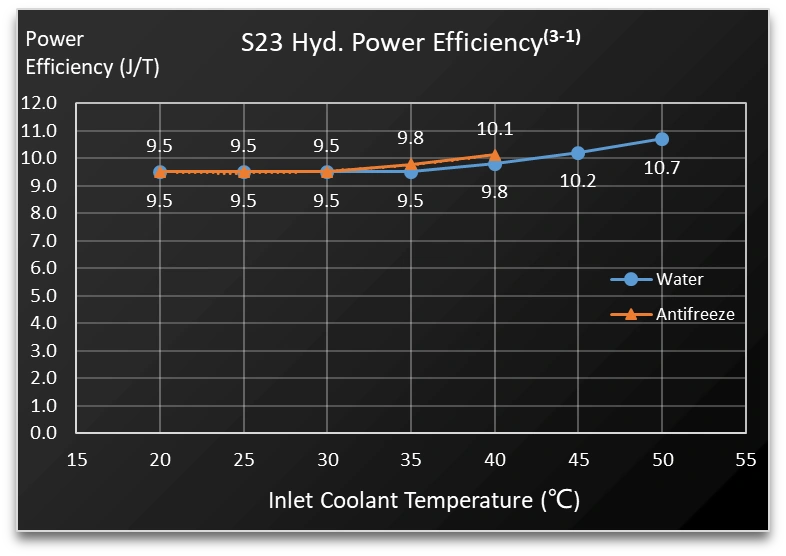

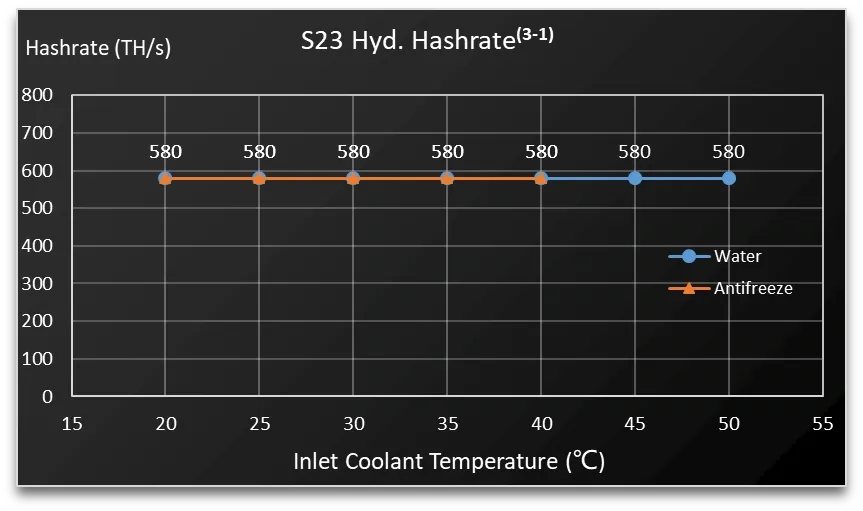

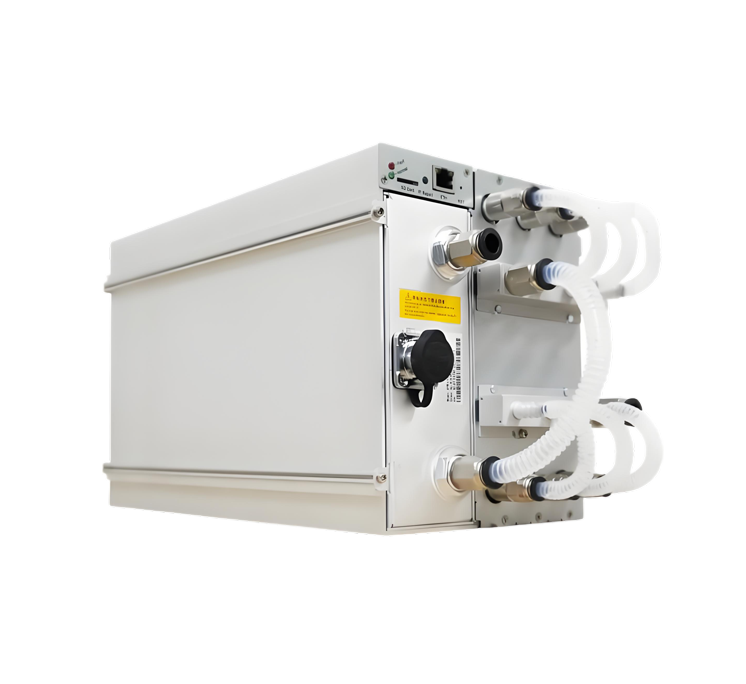

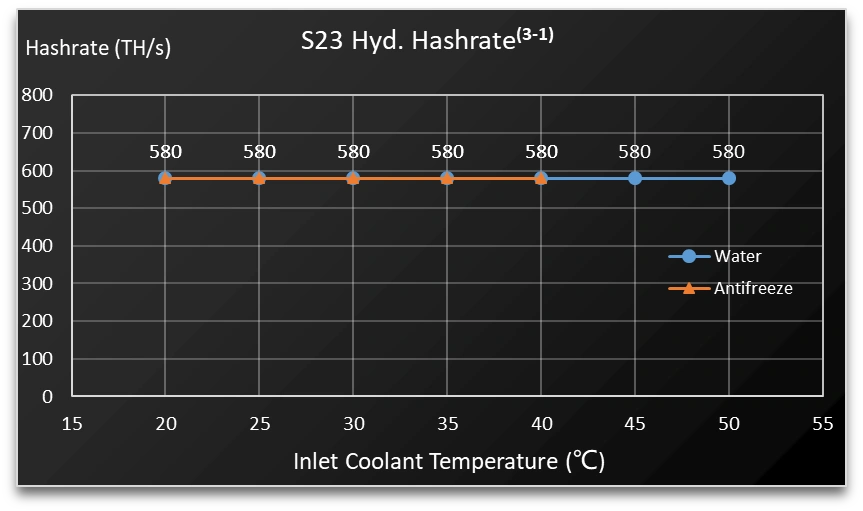

The S23 Hydro is a hydro-cooled SHA256 | BTC/BCH/BSV miner that stably delivers 580 Th/s hashrate at 5510W power consumption, with a 9.5 J/TH energy efficiency ratio, designed specifically for large-scale hydro mining farms and data centers.
Core Specifications
-
Hashrate / Power / Efficiency: 580 Th/s 5510W 9.5 J/TH
-
Dimensions: Machine 410×170×209mm (Packaging 570×316×430mm)
-
Weight: Net 13.5kg / Gross 14.8kg
-
Cooling System: Coolant 20–50℃ Flow rate 8.0–10.0 L/min Pressure ≤3.5 bar Connector OD10 mm
-
Coolant Compatibility: Antifreeze 7.0~9.0 / Pure water 6.5~7.5 / Deionized water 8.5~9.5
-
Power: 380–415V 3-phase 50–60Hz 12A
-
Network Interface: RJ45 Ethernet 10/100M
-
Environment: Storage -20–70°C | Operating humidity 10–90% (non-condensing)
-
Warranty: 365 days

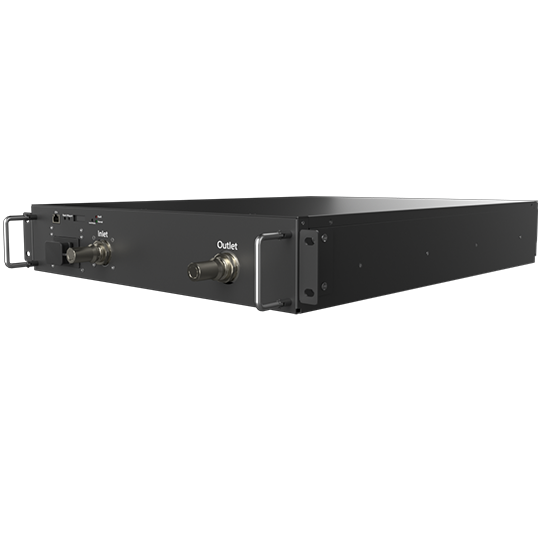

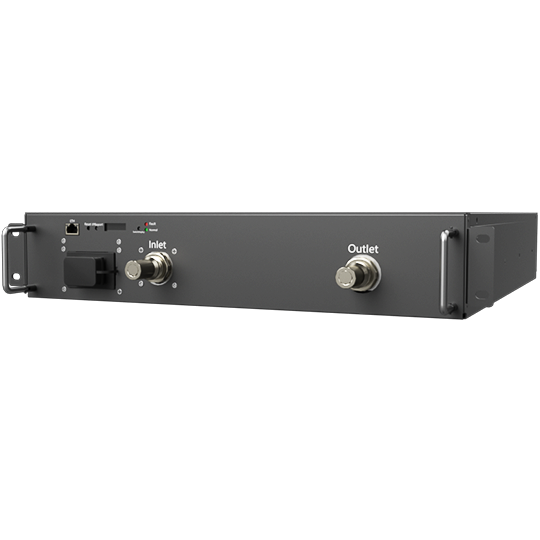

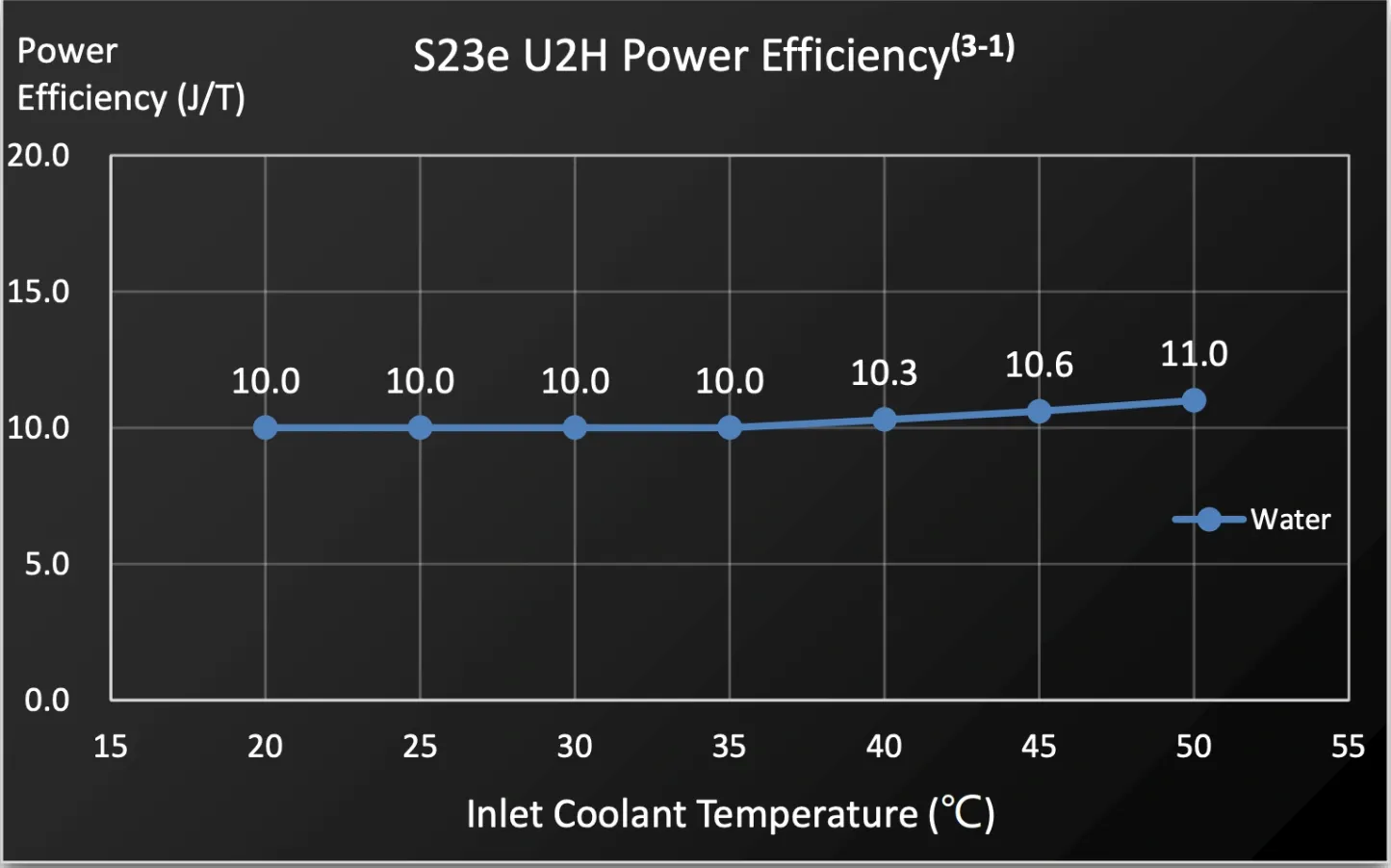

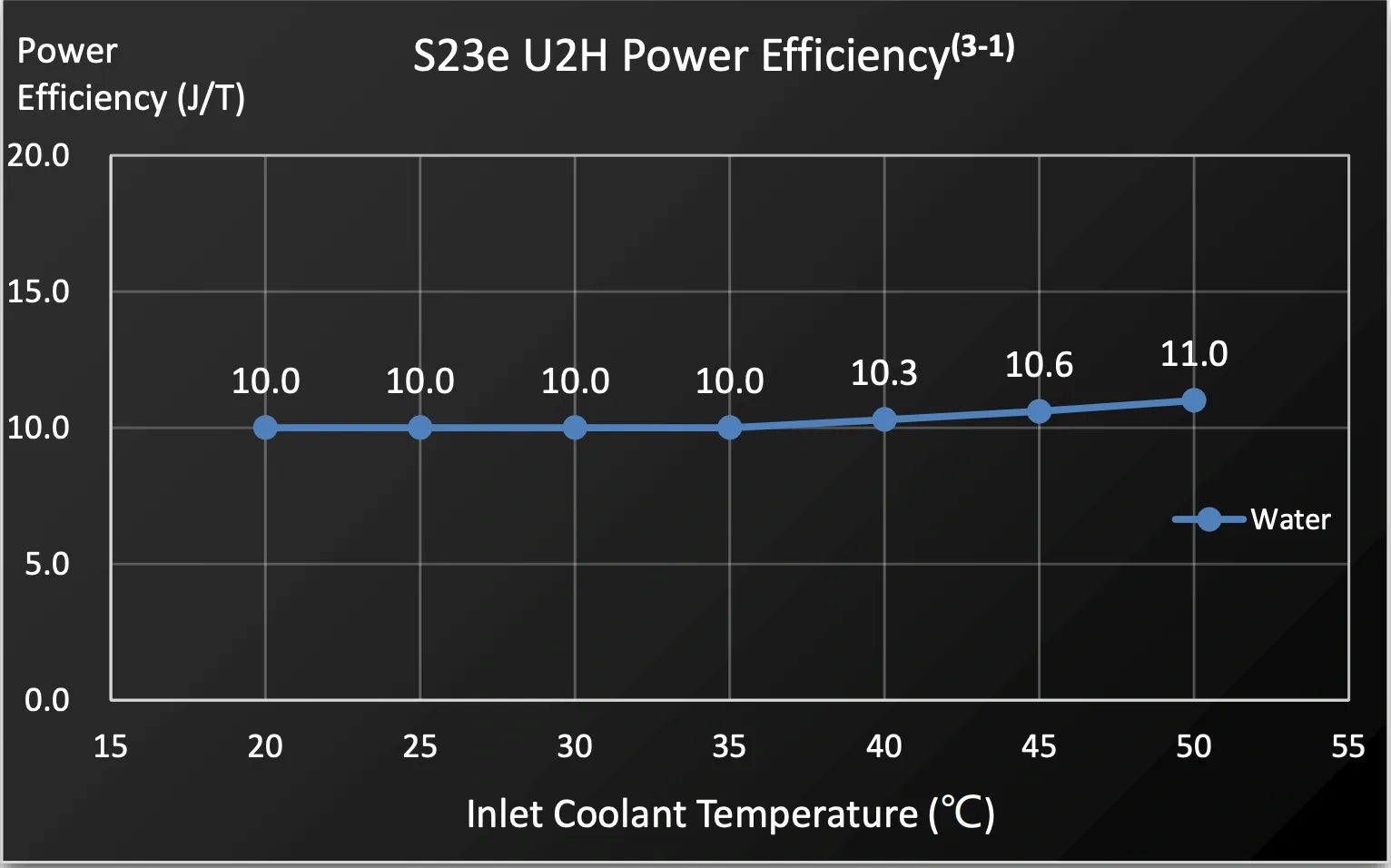

Bitmain Antminer S23e Hydro 2U

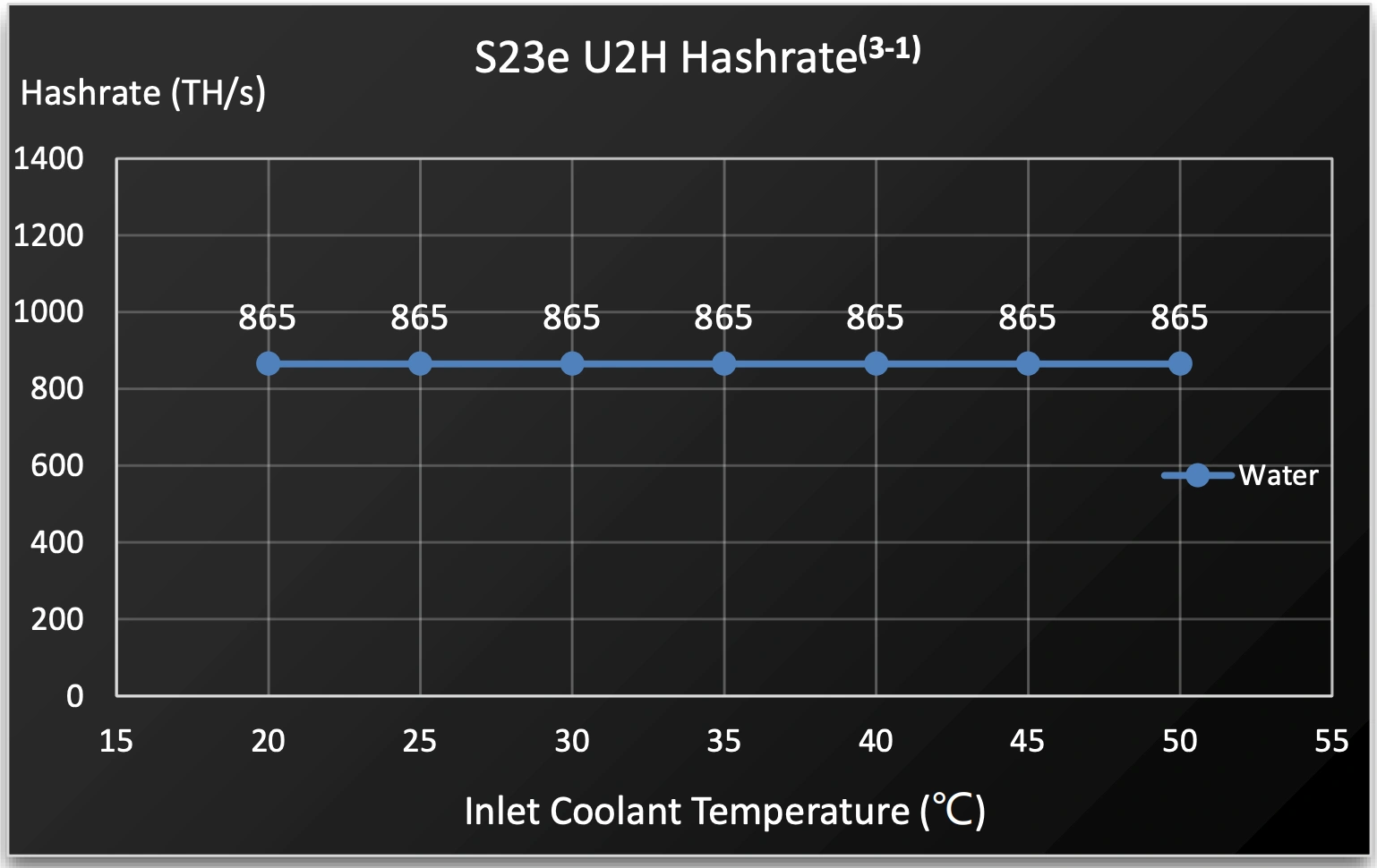

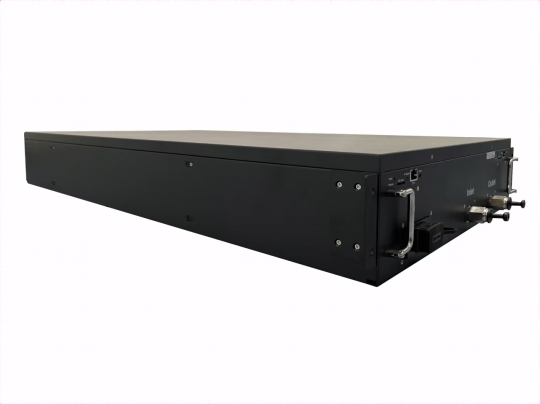

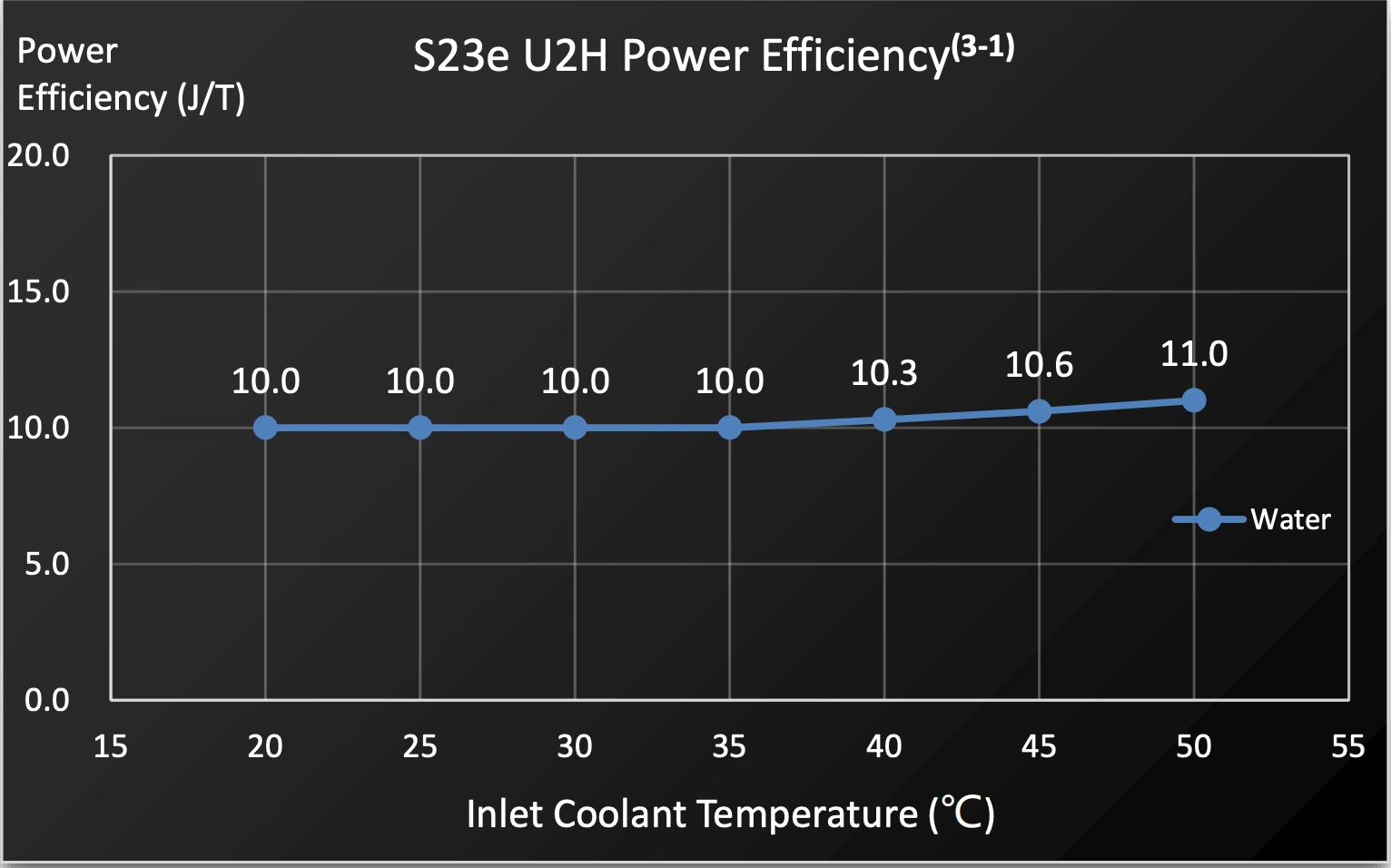

The S23e Hydro 2U (Model S23e U2) is a hydro-cooled SHA256 | BTC/BCH/BSV miner that stably delivers 865 Th/s hashrate at 8650W power consumption, with a 10 J/TH energy efficiency ratio, making it a high-performance 2U rack-mounted hydro cooling solution for large-scale professional mining farms.
Core Specifications
-
Hashrate / Power / Efficiency: 865 Th/s 8650W 10 J/TH
-
Dimensions: Machine 509×481×87mm
-
Weight: Net 19kg
-
Cooling System: Hydro cooling (Flow rate, pressure, and other parameters to be announced by official)
-
Power: 380–415V 3-phase 50–60Hz (Reference S23 Hyd.)
-
Network: RJ45 Ethernet 10/100M
-
Environment: Storage -20–70°C | Operating humidity 10–90% (non-condensing)
-
Warranty: 365 days

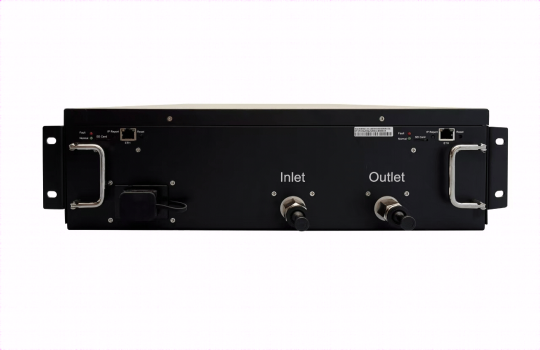

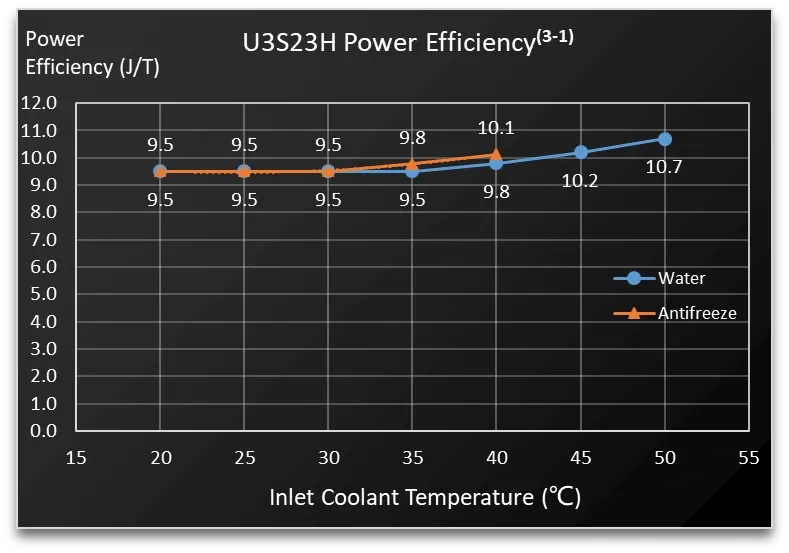

Bitmain Antminer S23 Hydro 3U

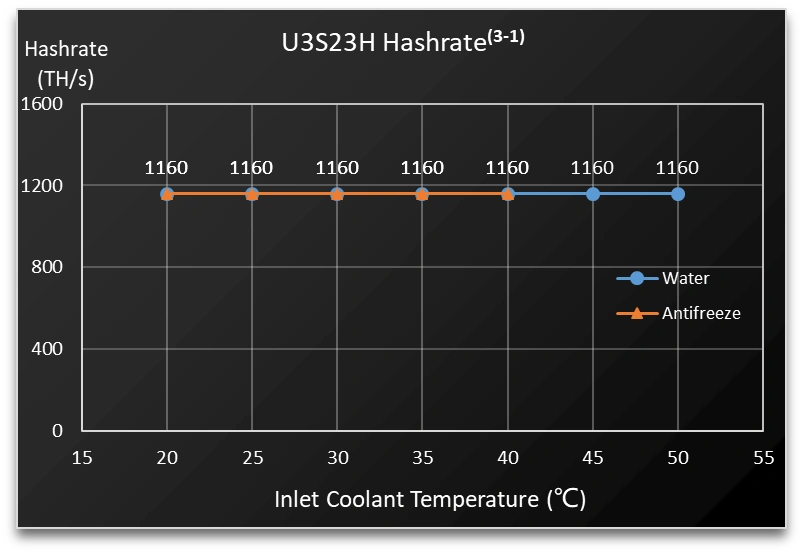

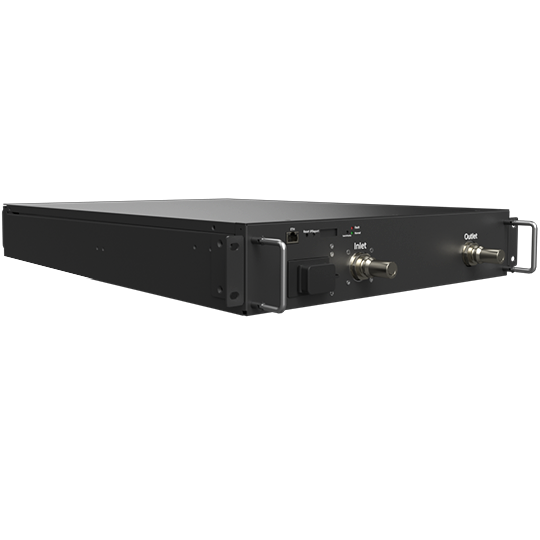

The S23 Hyd 3U (Model U3S23H) is a hydro-cooled SHA256 | BTC/BCH/BSV miner that stably delivers 1160 Th/s (1.16 PH/s) hashrate at 11020W power consumption, with a 9.5 J/TH energy efficiency ratio. Adopting a standard 3U rack form factor, it is the ultimate hashrate model for high-density deployments in enterprise-grade data centers.
Core Specifications
-
Hashrate / Power / Efficiency: 1160 Th/s 11020W 9.5 J/TH
-
Dimensions: Machine 900×482.6×130mm (Packaging 1150×640×260mm)
-
Weight: Net 42kg / Gross 48kg
-
Cooling System: Coolant 20–50℃ Flow rate 16.0–20.0 L/min Pressure ≤3.5 bar Connector OD14 mm
-
Coolant Compatibility: Antifreeze 7.0~9.0 / Pure water 6.5~7.5 / Deionized water 8.5~9.5
-
Power: 380–415V 3-phase 50–60Hz 24A LP34 power port
-
Network: RJ45 Ethernet 10/100M
-
Environment: Storage -20–70°C | Humidity 10–90% (non-condensing)
-
Warranty: 365 days
